HSS/HLR

A Home Subscriber Server(HSS) / Home Subscriber Register(HLR) serves as the primary database repository of subscriber information within a LTE/EPC or IMS network core. By centralising all the subscriber information in a single place it allows the signalling to be separated from policy providing a stream lined, high performing network.
HSS/HLR
Performance
Users: From 500 subs to 10 million subscribers
Users: From 500 subs to 10 million subscribers
Compatibility with 2G/3G/4G/5G mobile core, one set of profile for all
Compatibility with 2G/3G/4G/5G mobile core, one set of profile for all
One instance with EPC-HSS, IMS-HSS, 5G UDM, 3G HLR functionality
One instance with EPC-HSS, IMS-HSS, 5G UDM, 3G HLR functionality
Seamless support for multiple identities per subscriber
Seamless support for multiple identities per subscriber
Support Redundancy Deployment
Support Redundancy Deployment
Support GSM, UMTS, LTE, NR, IMS, Wi-Fi and M2M networks
Support GSM, UMTS, LTE, NR, IMS, Wi-Fi and M2M networks
Run on bare-metal, virtual platform or Cloud
 Field-proven with main stream vendors

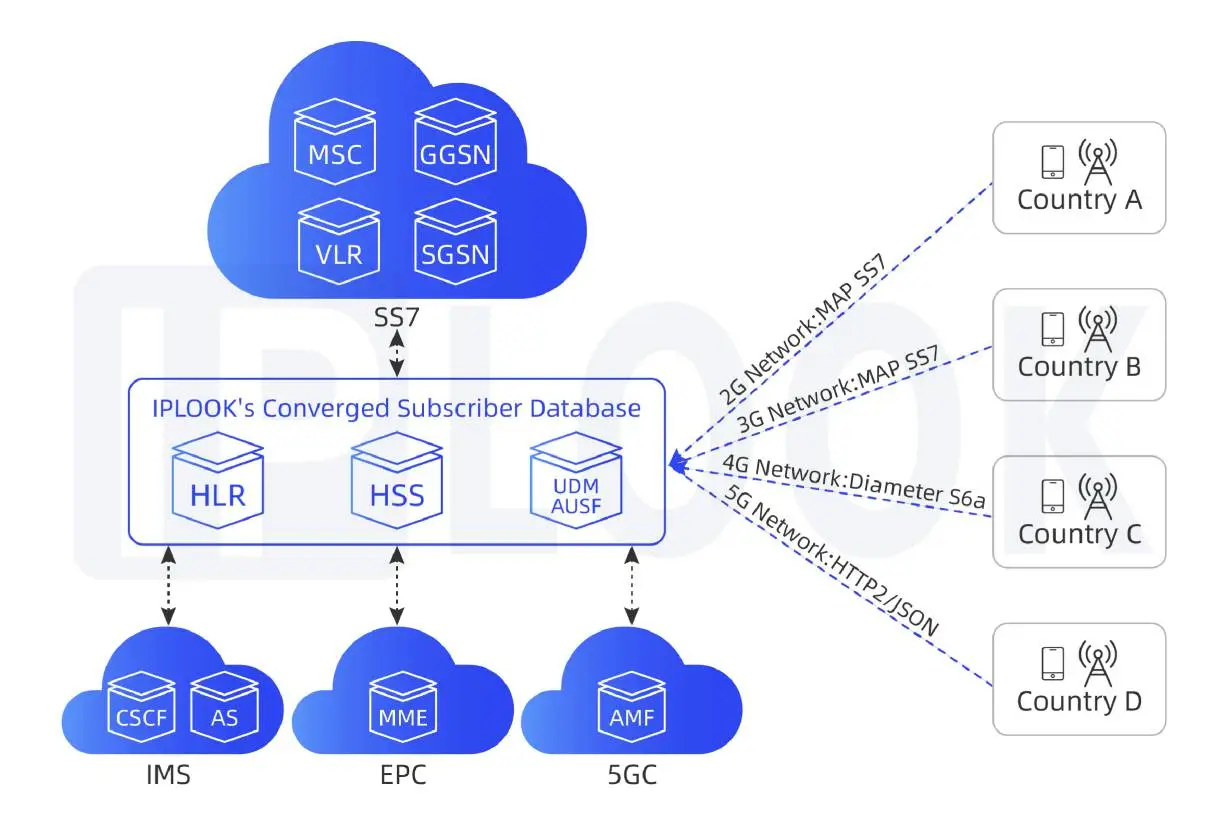

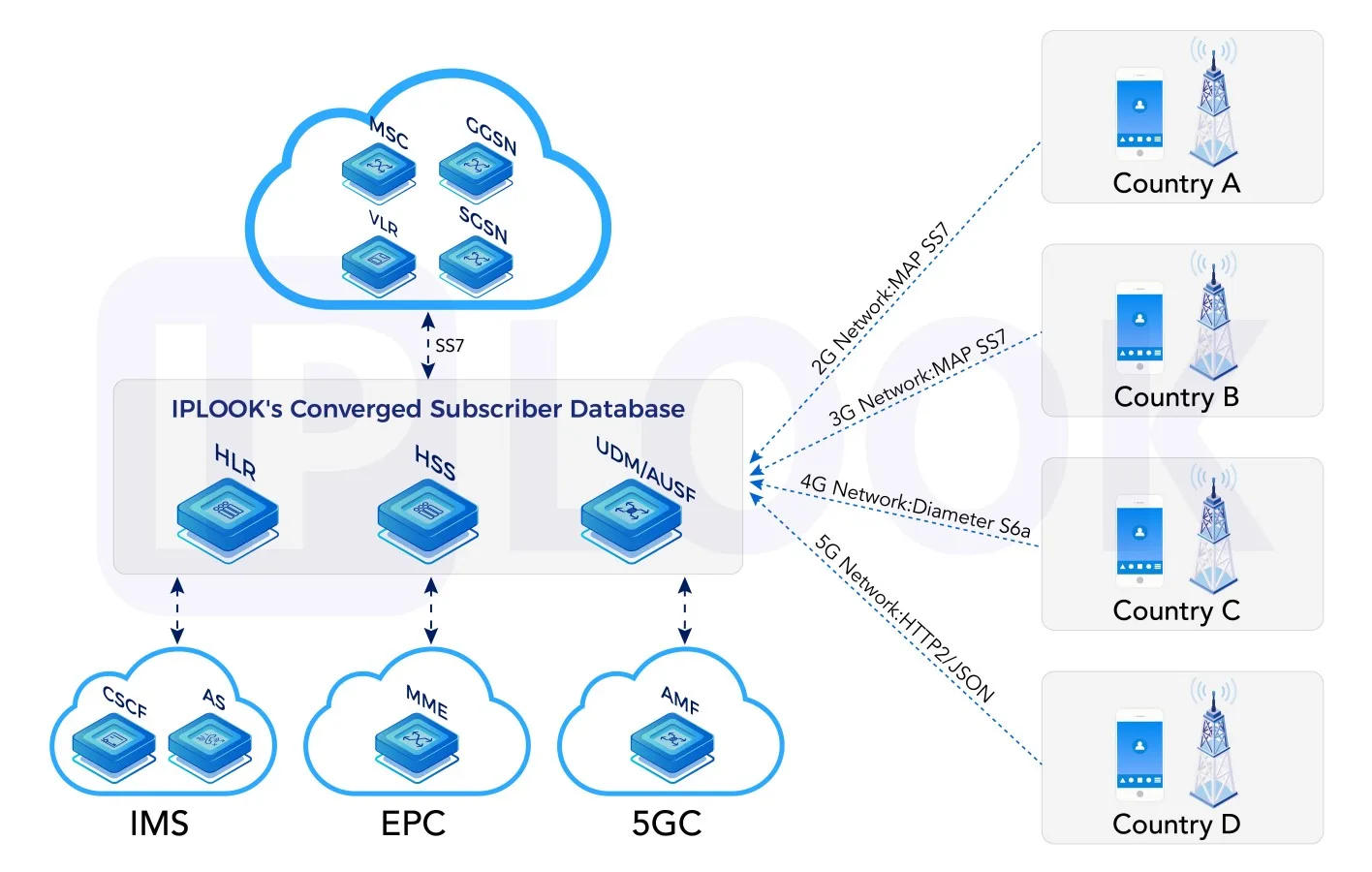

IPLOOK's Virtualized HSS/HLR
Support 2G, 3G, 4G, IMS and 5G
IPLOOK offers a complete solution through our HSS/HLR. Our HSS/HLR solution is ideally suited for MNO, MVNO/MVNE and M2M market. It is designed to overcome the limitations and disadvantages of traditional HSS products regarding flexibility, virtualization, cost of scaling and vendor lock-in.
Our carrier-grade HSS/HLR software is flexible and adaptable to the needs of the customer, that allows seamless migration and interworking and delivers significant feature and cost advantages over traditional products to both small and large service providers.
EPC HSS/HLR
Features

Interfaces comply to 3GPP R14: Cx/S6a
»  S6a: Between MME and HSS
»  Cx: Between CSCF and HSS
»  Gr: Between SGSN and HLR
»  C/D: Between GMSC/MSC and HLR
Basic subscriber Data Management:
»  Create a Subscriber
»  Delete a Subscriber
»  Define and Manage a subscriber’s templates
Modify a subscriber
Authentication Center
»  EPS-AKA function
»  KI/OP/OPC management
Distributed System
»  High Reliability
»  Smoothly Expansion
»  HCM: HSS Connection Module
»  HSC: HSS Subscriber Control
»  DSM: Data service Module
»  OMM: Operation Management Module
»  UDM: Data Management Module
Operation and Management
»  Web Client
»  OMC Client
»  Open Northbound interface and graphical web based management interface
Mobility Management
»  LTE subscriber mobility management
»  UE reachable management
»  Subscriber area roaming restriction
»  Local Breakout for Roaming
Multi-protocol interworking
»  SS7
»  Diameter
»  RADIUS
»  IT protocols
Multi-level backup mechanism
»  Level 1: 2N or N+1 redundancy solutions are applied in backup user data stored in cache. The user data from the main unit will be synchronized to the backup unit in real time.
»  Level 2: Database backup mode using 1+1 redundancy mode.
»  Level 3: The data is saved to a disk array in  RAID1 mode
Store mobility and service data for every subscriber
Contain the Center Authentication(AuC) functionality
Admission control with Access Type
