Compact EPC

IPLOOK's compact EPC also called "IKEPC500 series", it combines MME, SGW, PGW, HSS, PCRF, IMS and DRA network elements in one X86 COTS platform what are 100% 3GPP compliant, and each of them can support all standard interfaces defined by 3GPP.

The IKEPC500 series consists of IKEPC 510 and IKEPC 520, using a unified EMS (Element Management System) to reduce OPEX.

The IKEPC500 series can also be deployed in a centralized cloud or at the network edge, allowing a broad range of deployment scenarios.
Key Features and Benefits
All-In-One compact product
All-In-One compact product
Single server deployment option or two server deployment option
Multi-deployment scenarios supported
Multi-deployment scenarios supported
Central/Edged, Local/Cloud
Highly Scalable
Highly Scalable
From a small cost effective network to a large distributed network
Fast and easy installation
Fast and easy installation
A unified EMS, easy O&M and lower TCO
availability
99.999% availability
Support avtive/standby or active/active redundancy
 Support flexible hardware
Support flexible hardware specification and multiple server types from different COTS manufactures
Interop with various  eNodeBs
Interop with various  eNodeBs from third party vendors
Enable roaming functions between
Enable roaming functions between operators

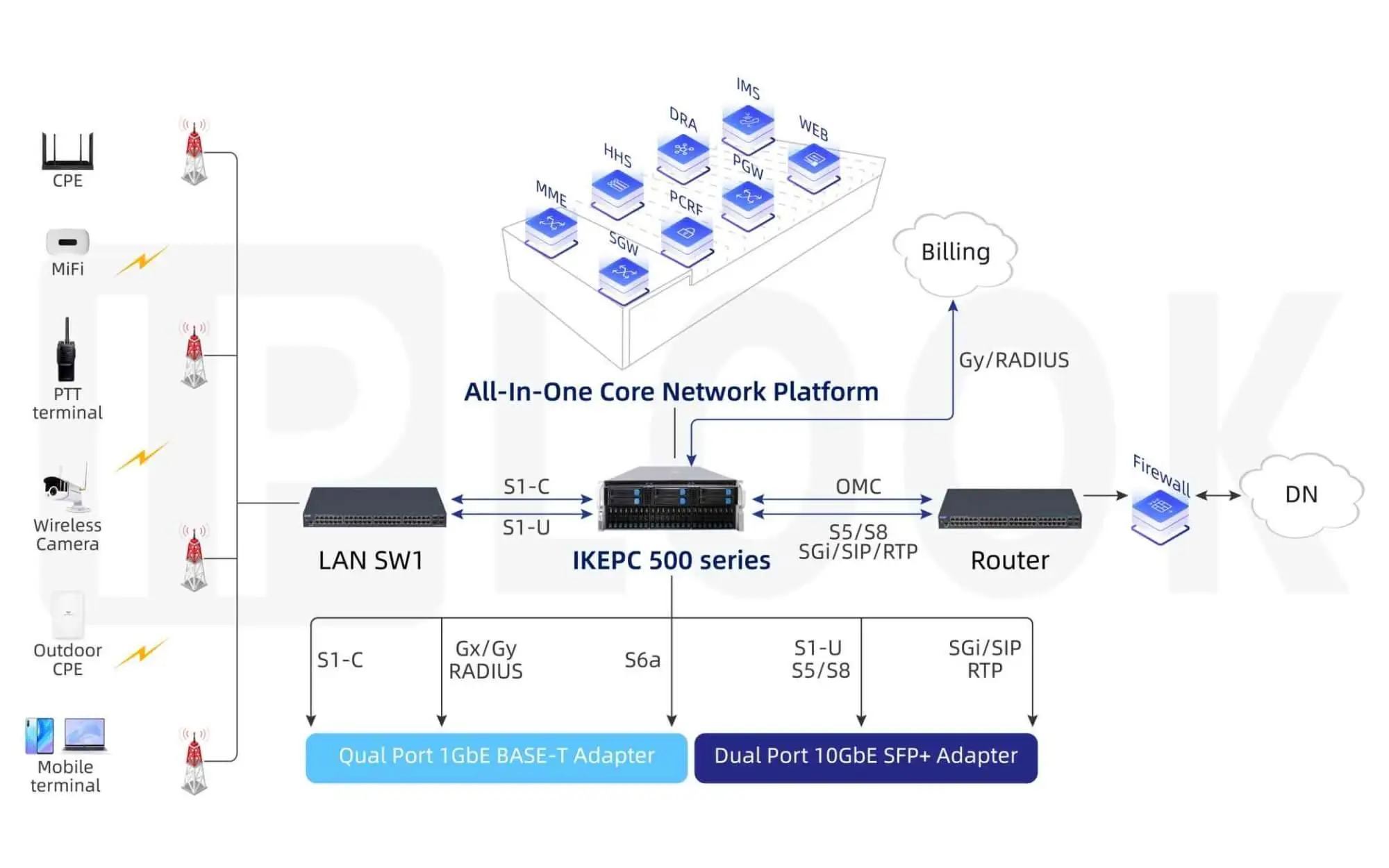

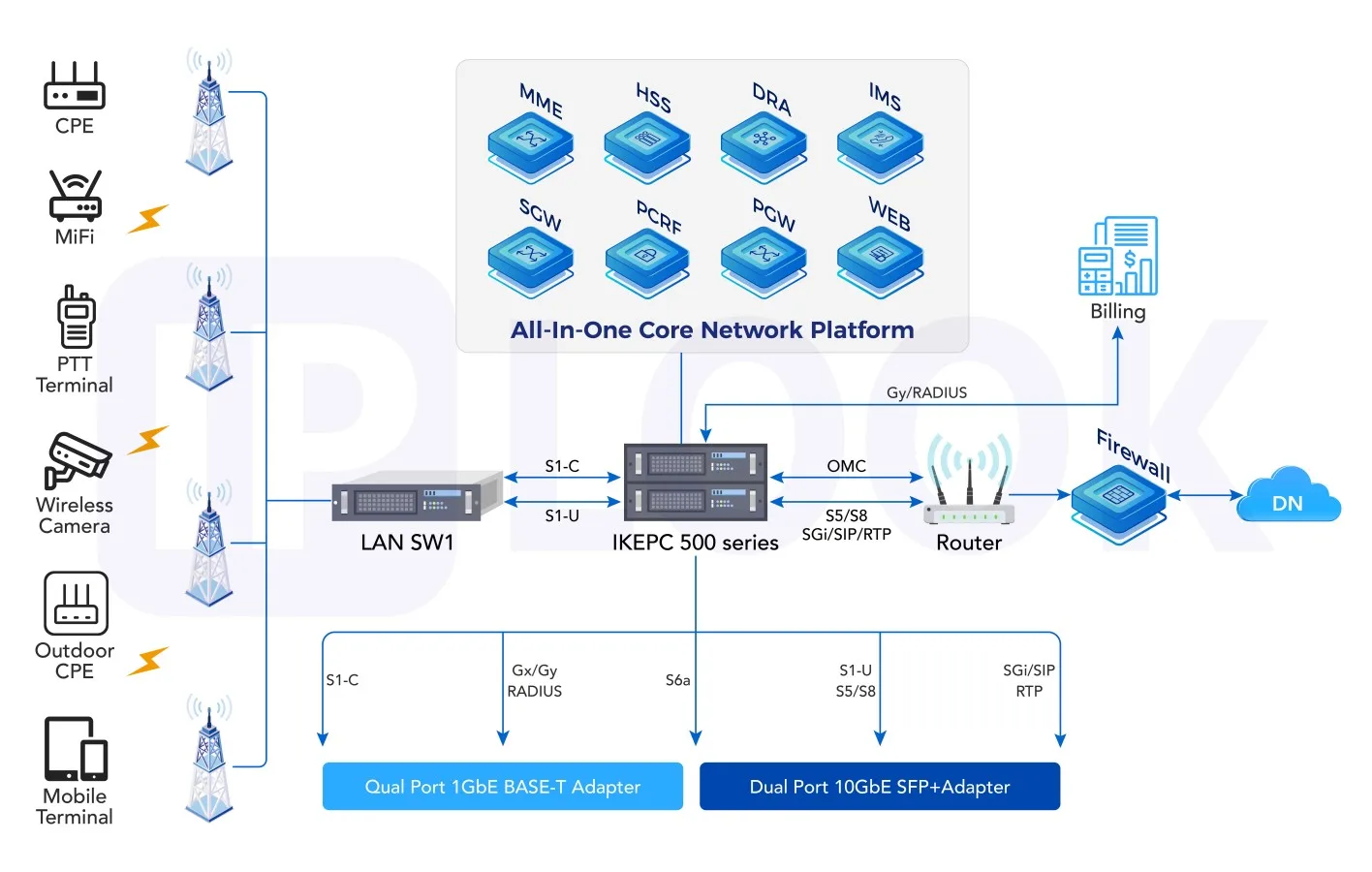

All-In-One design
Seamless integration and multi-deployment
The IKEPC500 series  provides single server deployment option or two-server deployment option to meet the various network requirements of operators and enterprises at different stages and in different application scenarios.
The IKEPC500 series has complete MME , SGW , PGW , HSS , PCRF , IMS , DRA and web management functions. It can implement LTE high-speed internet data services, VoLTE voice/video/SMS and other basic services. It also supports roaming functions between operators.
The IKEPC500 series can be widely deployed for Wireless Internet Services Provider( WISP ), Citizens Broadband Radio Service ( CBRS ),  Private LTE Networks and   Campus Coverage .


IPLOOK vEPC

Home-routed roaming model
With IKEPC500 series on AWS Cloud
IKEPC500 series is also a tailored solution deployed on the AWS Cloud that satisfifies telecom industry requirements. This offers a new cost effective, pay-as-you-go model for many mobile core networks that can be available globally in minutes.

With this solution, WISP/CBRS can deploy new 4G network easily and in short time, at the future it could smoothly evolve to 5GC with a simple software upgrade.
IPLOOK EPC deployment

IPLOOK IKEPC 510
Hardware type: 1U server
Hardware Specififications
»  2nd Gen Intel® Xeon® Scalable Processors
    Silver/Gold/Platinum full series
»  CPU*2, 2GHz or higher
»  16GB RAM or greater
»  480GbE*2 SSD RAID1
»  Intel 82599 Dual Port 10GbE SFP+
    Quad Port 1GbE*4 Base-T
Maximum number of UE: 2,000
Maximum number of eNodeB: 50
Throughput: Up to 600Mbps

IPLOOK IKEPC 520
Hardware type: 2U server
Hardware Specififications
»  3nd Gen Intel® Xeon® Scalable Processors
     Silver/Gold/Platinum full series
»  CPU*2, 2GHz or higher
»  32GB RAM or greater
»  480GbE*2 SSD RAID1
»  Intel 82599 Dual Port 10GbE SFP+
     Quad Port 1GbE*4 Base-T
Maximum number of UE: 5,000
Maximum number of eNodeB: 50
Throughput: Up to 6 Gbps
Related Products
Evolved Packet Core(EPC)
Evolved Packet Core(EPC)
Evolved Packet Core (EPC) is an innovation which depends on GSM/EDGE and UMTS/HSPA technologies, can increase the capacity and speed using a different radio interface together with core network improvements. EPC refers to a core network architecture that aggregates access networks including LTE, 3G or 2G.

The virtual EPC(vEPC) is a complete LTE packet core solution based on network functions virtualization (NFV) technology. The vEPC can shorten the new service time to market, build an open ecosystem, and stimulate service innovation.
Learn More
Mobility Management Entity(MME)
Mobility Management Entity(MME)
Mobility Management Entity(MME) is a key component of the standards-defined Evolved Pack Core (EPC) for LTE. It provides mobility session management for the LTE network and supports subscriber authentication, roaming and handovers to other networks.
Learn More
HSS/HLR
HSS/HLR

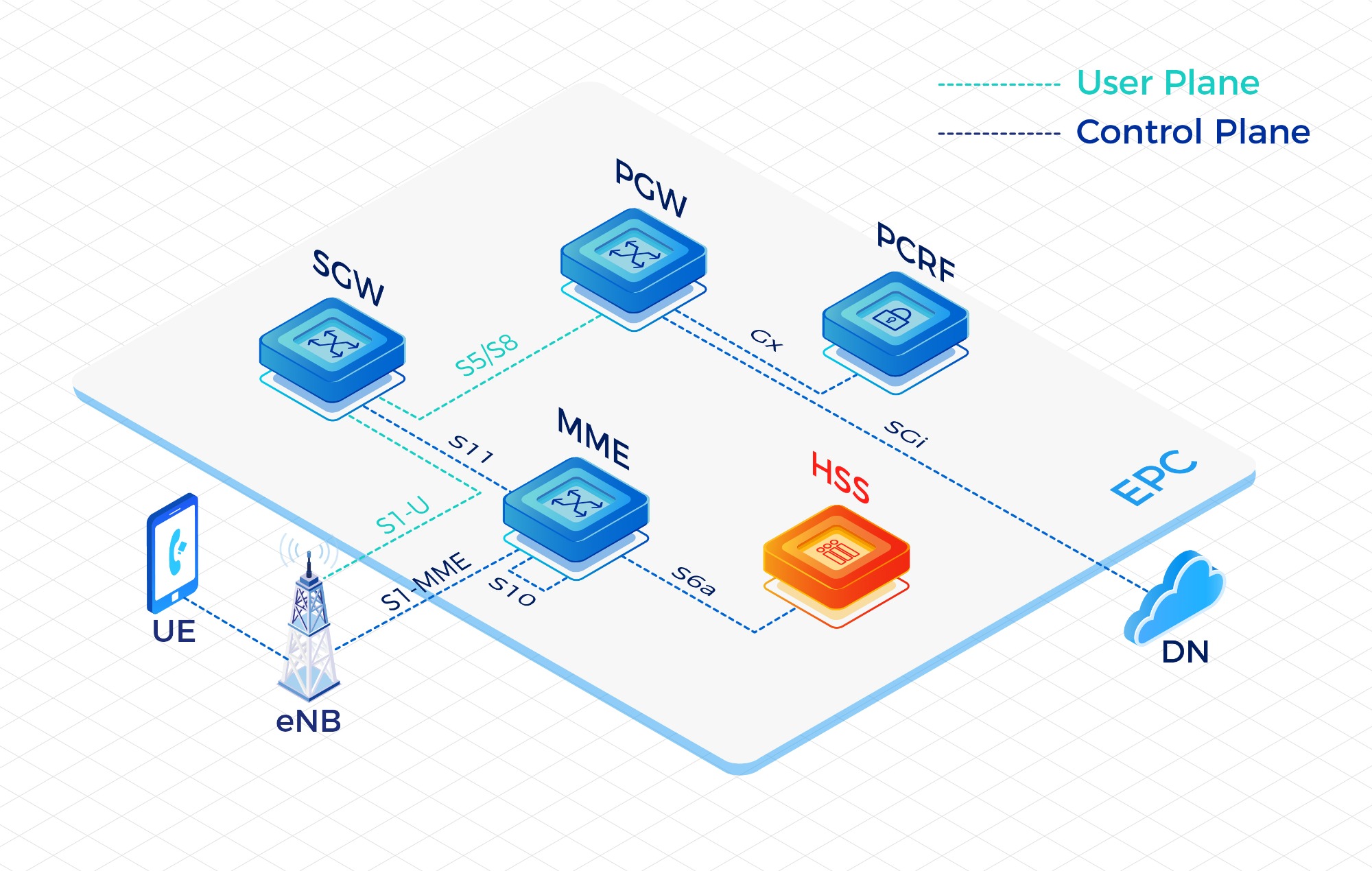

A Home Subscriber Server(HSS) / Home Subscriber Register(HLR) serves as the primary database repository of subscriber information within a LTE/EPC or IMS network core. By centralising all the subscriber information in a single place it allows the signalling to be separated from policy providing a stream lined, high performing network.
Learn More
xGW(SGW/PGW)
xGW(SGW/PGW)

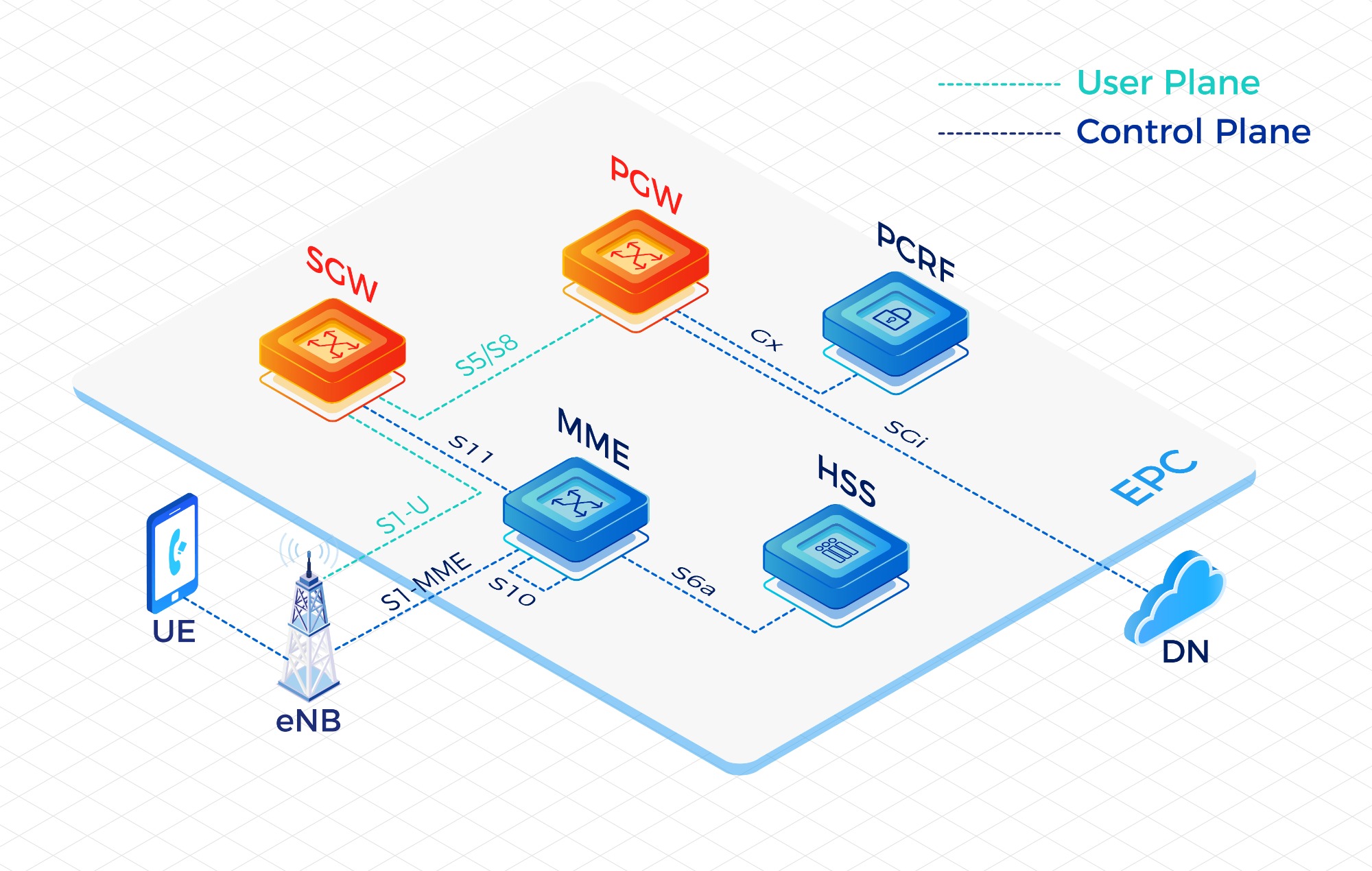

SGW(Serving Gateway)
The SGW node handles the user data traffic, but isn' t responsible for the signaling data used. It transports IP data from UE's to the LTE Core Network. The SGW also routes incoming and outgoing IP packets for better system collaboration and serves as an anchor for the UE when it moves from one eNodeB to another.

PGW (PDN Gateway)
PGW is the network node that connects the EPC to external IP networks. What the PGW does is that it routes packets to and from external IP networks. Beyond that, it also allocates an IP address to all UEs and enforces different policies regarding IP user traffic such as packet filtering.
Learn More
Policy and Charging Rules Function(PCRF)
Policy and Charging Rules Function(PCRF)
Policy and Charging Rules Function (PCRF), is the part of the Evolved Packet Core (EPC) that supports service data flow detection, policy enforcement and flow-based charging. It offers a comprehensive solution that enables a new generation service provider to offer multiple use cases that allow them to better control their services and align their revenue with their resources.
Learn More
Evolved Packet Core(EPC)
Evolved Packet Core(EPC)
Evolved Packet Core (EPC) is an innovation which depends on GSM/EDGE and UMTS/HSPA technologies, can increase the capacity and speed using a different radio interface together with core network improvements. EPC refers to a core network architecture that aggregates access networks including LTE, 3G or 2G.

The virtual EPC(vEPC) is a complete LTE packet core solution based on network functions virtualization (NFV) technology. The vEPC can shorten the new service time to market, build an open ecosystem, and stimulate service innovation.
Learn More
Mobility Management Entity(MME)
Mobility Management Entity(MME)
Mobility Management Entity(MME) is a key component of the standards-defined Evolved Pack Core (EPC) for LTE. It provides mobility session management for the LTE network and supports subscriber authentication, roaming and handovers to other networks.
Learn More
HSS/HLR
HSS/HLR
A Home Subscriber Server(HSS) / Home Subscriber Register(HLR) serves as the primary database repository of subscriber information within a LTE/EPC or IMS network core. By centralising all the subscriber information in a single place it allows the signalling to be separated from policy providing a stream lined, high performing network.
Learn More
xGW(SGW/PGW)
xGW(SGW/PGW)
SGW(Serving Gateway)
The SGW node handles the user data traffic, but isn' t responsible for the signaling data used. It transports IP data from UE's to the LTE Core Network. The SGW also routes incoming and outgoing IP packets for better system collaboration and serves as an anchor for the UE when it moves from one eNodeB to another.

PGW (PDN Gateway)
PGW is the network node that connects the EPC to external IP networks. What the PGW does is that it routes packets to and from external IP networks. Beyond that, it also allocates an IP address to all UEs and enforces different policies regarding IP user traffic such as packet filtering.
Learn More
Policy and Charging Rules Function(PCRF)
Policy and Charging Rules Function(PCRF)
Policy and Charging Rules Function (PCRF), is the part of the Evolved Packet Core (EPC) that supports service data flow detection, policy enforcement and flow-based charging. It offers a comprehensive solution that enables a new generation service provider to offer multiple use cases that allow them to better control their services and align their revenue with their resources.
Learn More
