Network Repository Function(NRF)

NRF, one of the network functions of the 5G core network(5GC). It supports the service discovery feature, which receives NF discovery requests from NF instances and provides information about the discovered NF instance (discovered) to another NF instance. Registration information includes NF type, address, service list, etc.
Network Repository Function(NRF)
Key Benefits
Support for service discovery features
Perfect compatibility with third-party core network elements
Deployed on X86 COTS server, NFV platform and Cloud
Enabled for centralized or distributed data centers

IPLOOK's  5GC  NRF
The 5GC NRF is the management center of the service-oriented architecture.
l   Support for service discovery features
l   Maintenance of NEF information, including availability and its support services

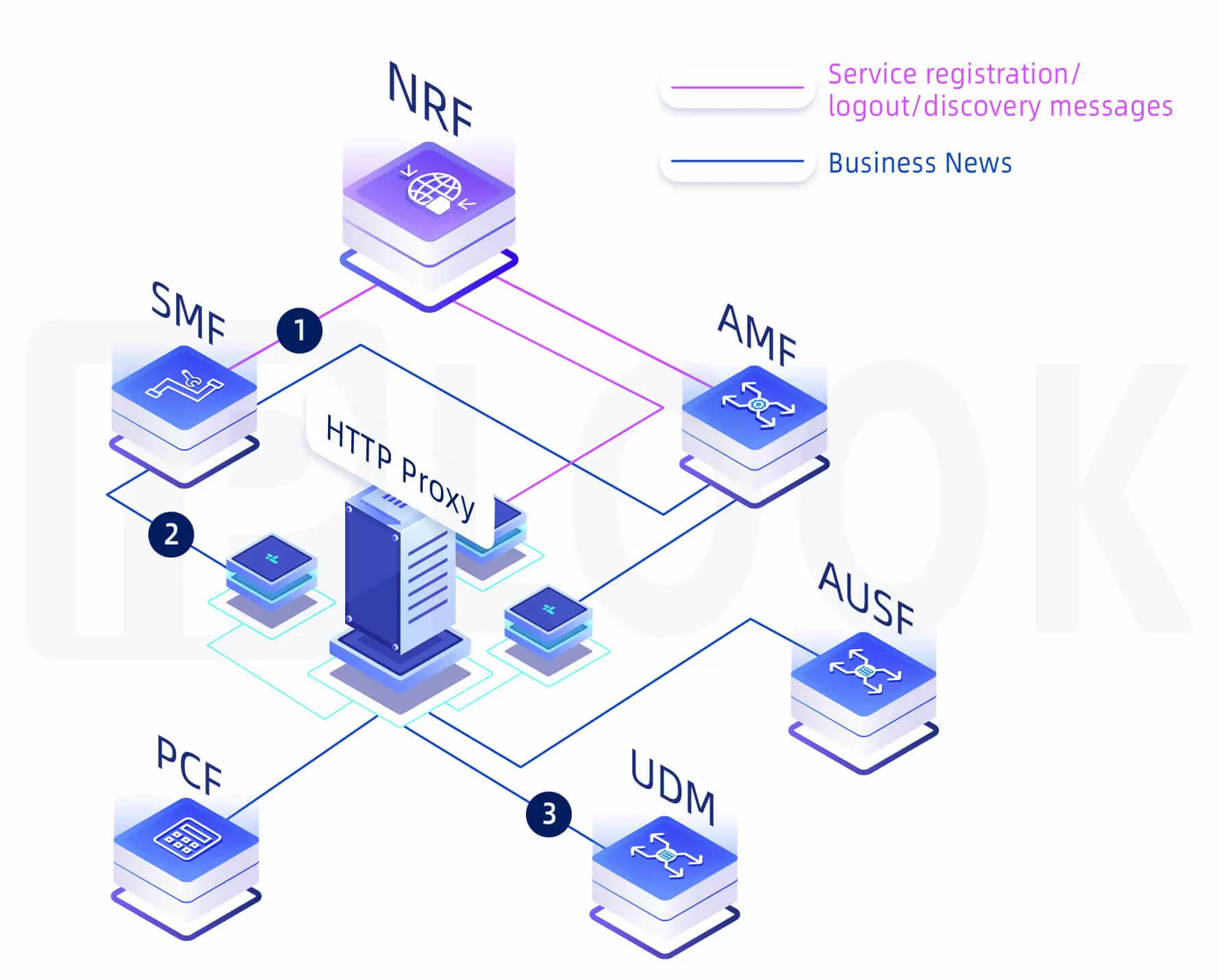

NRF and HTTP Proxy collaborate on 5G signaling routing functions.
l   Services without subscriber number attribution use NRF addressing, such as AMF addressing SMF, similar to DNS for 4G networks.
l   Services with subscriber number attribution use HTTP Proxy addressing, such as AMF addressing UDM/PCF, SMF addressing UDM/PCF/OCS.
IPLOOK 5GC NRF
Features

Comply to  3GPP R15/R16 Standards
Interface Function
»  Northbound Interface (RESTful API)
»  Nnrf Interface
»  N27 Interface
»  Web Server
NF Management Service Function
»  NF Register
»  NF Update
»  NF Deregister
»  NF HeartBeat
»  NF Status Subscription/UnSubscription
»  NF Status Inform
NF Discovery Service Function
»  NF Discovery
Operation and Maintenance
»  KPI Management
»  Fault Management
»  Log Management
»  Configuration Management
»  License Management
»  Remote Operation and Maintenance
»  SSH
»  Availability
NF AccessToken Service Function
»  NF AccessToken
Open Northbound interface and graphical web based management interface
»  RESTful
»  API
